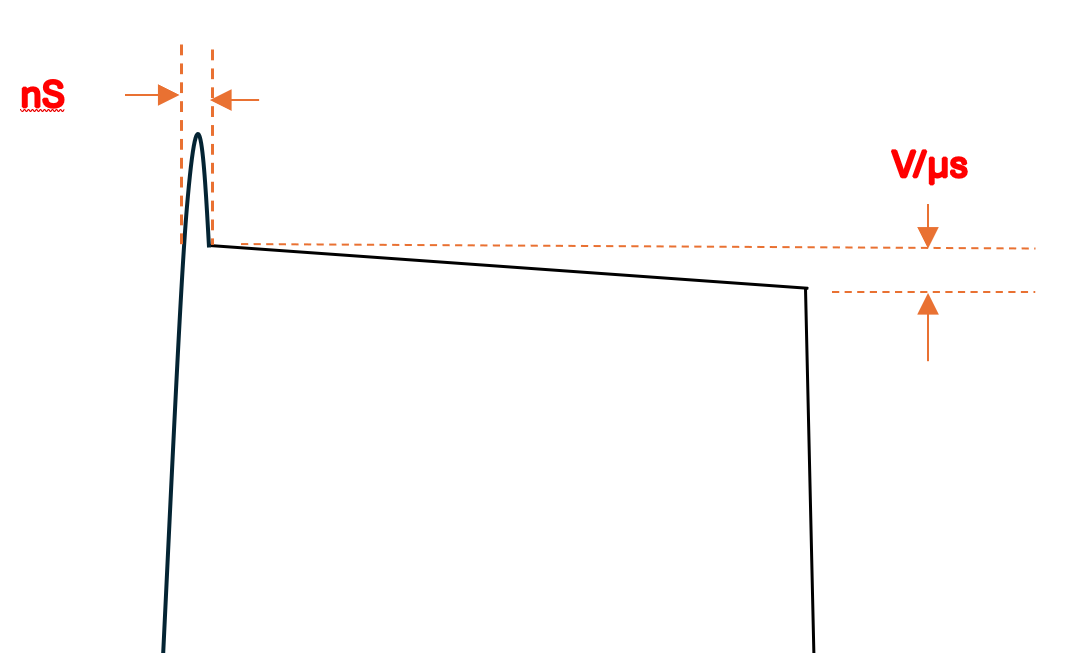

We have a need to measure some unusual aspects of a pulse waveform on some MSO22 scopes (see attached drawing):
- Duration of the overshoot at the top of the pulse (in nS)
- Slope of the flat portion of the pulse (in V/uS)
So far, we've had to use the cursors to manual locate and measure them, but I'm wondering if there is a way to do it through the measurements functions built into the scope, as that would save us a lot of time. Any suggestions? Thanks in advance!
-=Tygh=-
