Discontinuity on IV graph during voltage sweep on diode

Hello everyone,

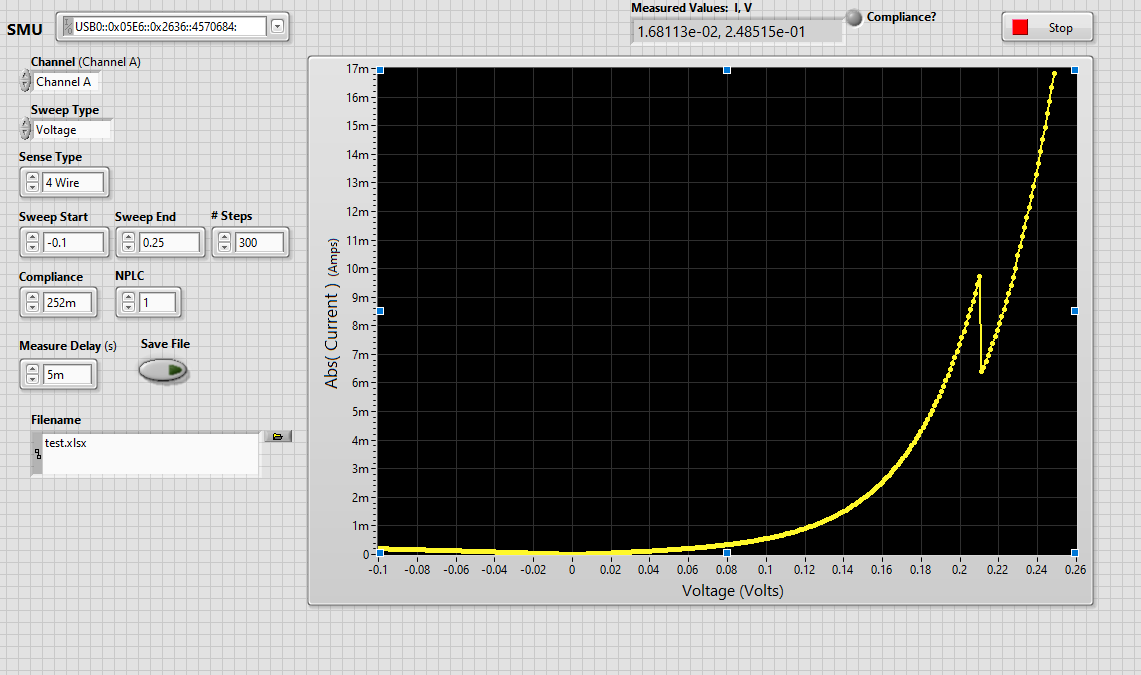

I am reaching out for help with an issue we are encountering with our 2363B Source Measure Unit. During voltage sweeps on diodes to obtain current versus voltage data, we observe a notable discontinuity at the 10 mA current range. This anomaly does not appear when performing current sweeps, which suggests the issue is specific to voltage sweeps.

Interestingly, when we manually source 100 mA of current, the discontinuity disappears. This leads me to believe that the auto-ranging feature, which we use to minimize noise, might be contributing to the issue, but we want to stay with the auto-ranging feature. We have attempted to mitigate this by adjusting the delay and interval settings, but the problem persists.

Could you please provide guidance or troubleshooting steps on how to address this discontinuity? Are there specific settings or adjustments we can make on the SMU to handle this manually while still utilizing auto-ranging? Any assistance or recommendations would be greatly appreciated.

Are you using a fixed source range?  If the source range is also using auto, then the discontinuity could be for the hand-off of 200mV to 2V range as you sweep to 250mV.  A source range can go to 101% of its full-scale value.

For the data in the buffer, look at the measurerange and sourcerange attributes.  And perhaps post a CSV with your I, V, timestamp and the range information.
Try setting the smu sourcerange to a fixed value that can handle all the desired source levels (2V in your case).

When was last time your instrument was calibrated?
